Product details
14000BPH Complete Full Automatic Fresh Fruit Juice Processing Line
Product overview
This machine is usually used to produce juice, dairy drinks. 2 in 1 filling sealing machine, 3 in 1 rinsing filling sealing machine, and 4 in 1 rinsing filling sealing capping machine are available. normal pressure filling, automatic cover, electric heating sealing and screw cap(optional).Valves, PLC control system, temperature control, photoelectric pneumatic control, and automatic lubrication, etc.
Features:
This machine is a tribloc, combining rinsing, filling capping in one unit, rinsing an empty plastic bottle, filling liquid into the bottle, then closing the cap. It is applicable for producing all still beverages, for all kinds of fruit juice, mango juice, lemon juice, pineapple juice, orange juice, coconut water, flavored juice, tea drinks, coffee drinks, and so on. It rinses empty bottles, fills juice into plastic bottles, and caps them with plastic caps.
It can be filled at both hot temperatures and normal temperatures.
The back-flow system guarantees a hot filling temperature.
The whole process can be hot filling or normal temperature filling. It comes with a foil punching machine to make foil, and electrical heating sealing can seal foil firmly, also can choose screw capping (optional) after sealing. The Valve, PLC control system, photoelectric temperature control, pneumatic control, and automatic lubricating are adopted from Germany, America, Japan, n etc, famous brands.
Several Systems in One Machine

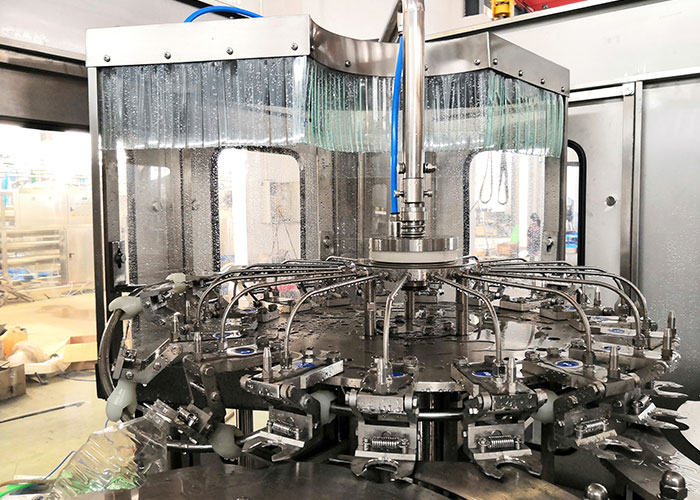

Rinsing System
The innovative water distribution system of the liquid filling machines for sale optimizes water conservation. The patented bottle clamp design features 304 stainless steel claws with food-grade plastic pads to prevent scratches and protect the bottle's mouth, enhancing the drinking experience and avoiding any injury to consumers. The food-grade 304 stainless steel flushing head and water injection design provide additional cleanliness while conserving even more water.

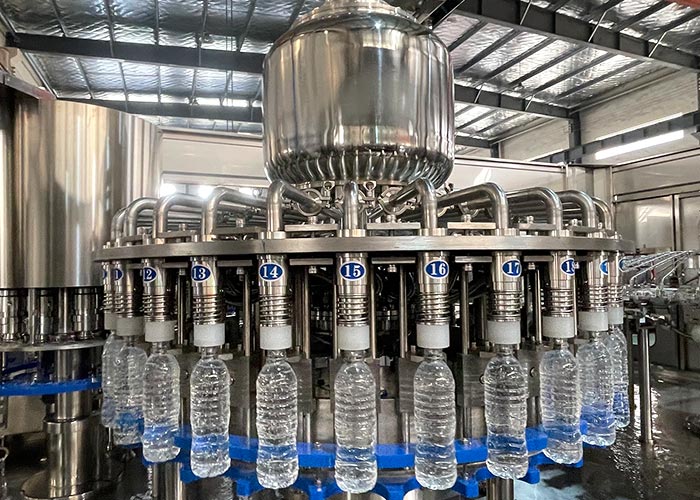

Filling Part
Our hot fill bottling machine is satisfying the market of JNSDIT (juice, nectar, soft drink, isotonics, tea) filled in PET bottles. The liquid filter has 14-40 filling heads, which is more efficient than a machine that has a single head.

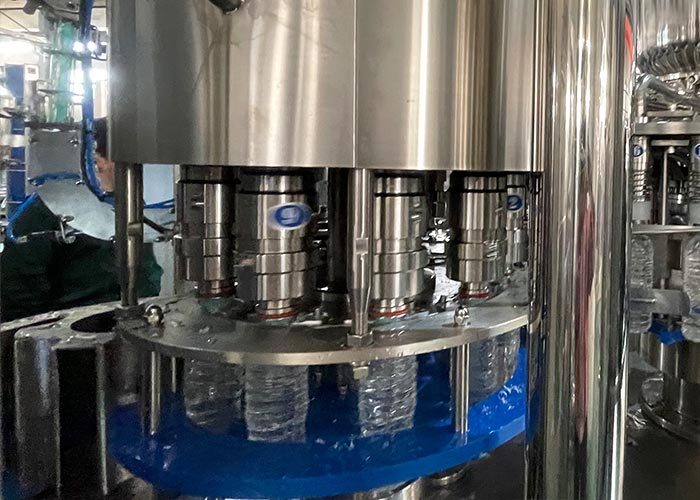

Capping part
A capping solution that is unparalleled and uses a solitary container for optimal bottle excellence and drink protection. It enhances the speed of juice filling and seals PET bottles promptly, preserving top-notch product standards and preventing any secondary contamination.
| Containers and specifications | ||||
| Full Automatic Complete Juice Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck
According request |
As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤310mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle separating system will be added. |
||||
| Juice Preparation | Fruit, Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
|
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic |
Packing system | Min, Spec. | Manual
Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer |
|
| Manual
Film shrinker Wrap Around Packer Robert Packing Machine |
1*2
2*3 3*4 4*6 3*5 |
|||
| User Ambient Conditions | Temperature：10～40℃； Humidity： No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
