400-800BPH 3 in 1 Automatic Mineral Water Bottling Equipment Filling Machine
Product overview
This series of equipment is used for the filling production of 3-10L large bottles of water, juice and oil. The machine integrates rinsing, filling and sealing. The output can be customized from 400 to 800 bottles/hour;
Features:
This machine is a linear machine for filling 3- 10L bottles of water, juice, and oil, which integrates rinsing, filling, and sealing.
It is made of food-grade SUS304 stainless steel, and the output can be customized from 400-800 bottles/hour.
Controlled by Japan Mitsubishi PLC, Taiwan Wyland touch screen man-machine interface; the whole line output can be adjusted and has good compatibility and expandability.
We can provide the whole production line equipment, with an output of 400-3000 bottles/hour.
We can customize various special equipment according to your needs, according to different bottle types, cap types, and filling materials.
Workflow

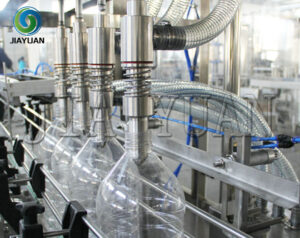

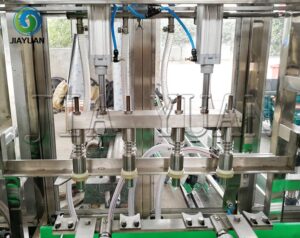

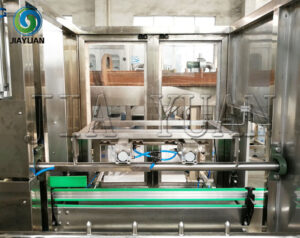

Firstly, the empty bottles will be fed into the filling main machine; the filling main machine will automatically rinse and reset the empty bottles by turning them over, the rinsing station is generally divided into two kinds of 4-head and 8-head, which correspond to the outputs of 500 bottles/hour and 1,000 bottles/hour, respectively, and the turning rinsing ensures that the bottles inside and outside of the bottles meet the relevant national hygiene standards, and the filling adopts the atmospheric pressure valve with a reflux device with a fast filling speed, stable filling, and no spraying and leaking phenomenon. After the filling is completed, the bottle is capped by a capping or capping mechanism.
Competitive Advantage
We can provide complete line plants, including water treatment, blowing machine, filling machine, labeling machine, packing machine, palletizer, and other equipment. With our rich experience in this business, we can provide a turnkey solution for you, from plant layout, bottle design, label design, production line setup, and operator training.
We provide a one-year guarantee and lifelong technical support. Any time the buyer has any problems, we will service or send professional engineers to help you debug.
Our service
- Complete line equipment
- Layout plant
- Bottle design
- Label design
- Preform/ cap/ label/ packing material provision
- 24/7 technical support
