6000BPH PET Bottle Pasteurized UHT Drinks Filling Machines Fruit Juice Making Machine Line
Product overview
This machine is usually used to produce juice, dairy drinks. 2 in 1 filling sealing machine, 3 in 1 rinsing filling sealing machine, and 4 in 1 rinsing filling sealing capping machine are available. normal pressure filling, automatic cover, electric heating sealing and screw cap(optional).Valves, PLC control system, temperature control, photoelectric pneumatic control, and automatic lubrication, etc.
Features:
This machine is a unique design combining the three machines of bottle washing,filling and capping in one, which decreases main power, saves space and diminishs the air pollution among the three machines. It is applicable for all kinds of fruit juice, flavored beverages, tea drinks, vinegar and other still beverages. It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
With temperature controller, it can also conduct hot filling.
Several Systems in One Machine
Rinsing System
The innovative water distribution system of the liquid filling machines for sale optimizes water conservation. The patented bottle clamp design features 304 stainless steel claws with food-grade plastic pads to prevent scratches and protect the bottle's mouth, enhancing the drinking experience and avoiding any injury to consumers. The food-grade 304 stainless steel flushing head and water injection design provide additional cleanliness while conserving even more water.

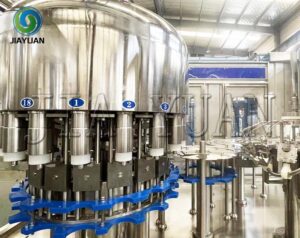

Filling Part
Our hot fill bottling machine is satisfying the market of JNSDIT (juice, nectar, soft drink, isotonics, tea) filled in PET bottles. The liquid filter has 14-40 filling heads, which is more efficient than a machine that has a single head.

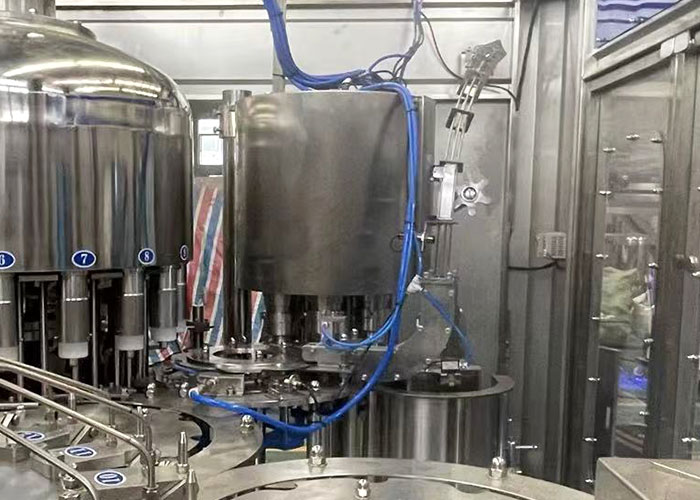

Capping part
A capping solution that is unparalleled and uses a solitary container for optimal bottle excellence and drink protection. It enhances the speed of juice filling and seals PET bottles promptly, preserving top-notch product standards and preventing any secondary contamination.
Decription
1). Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

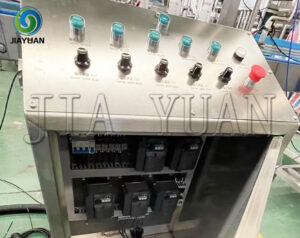

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
| Containers and specifications | ||||
| Full Automatic Complete Juice Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck
According request |
As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤310mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle separating system will be added. |
||||
| Juice Preparation | Fruit, Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
|
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic |
Packing system | Min, Spec. | Manual
Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer |
|
| Manual
Film shrinker Wrap Around Packer Robert Packing Machine |
1*2
2*3 3*4 4*6 3*5 |
|||
| User Ambient Conditions | Temperature：10～40℃； Humidity： No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
