Automatic Half Tray Film Shrink Wrapping Machine Heat Cutting and Shrink Wrap Tunnel

15+ years of filling machinery experience Training And After-Sale Service Engineering Design And Installation

Product overview

The equipment is an automated system designed to efficiently package bottled water for commercial distribution. This allows the manufacturers to produce and supply water in bulk along with maintaining it’s standards.
Contact Us View Solutions

Automatic - heat shrinkable film packaging machine is a kind of present beverage industry's more advanced two packaging machine, designed for (canned, bottled beverage line design and manufacturing). Its function is to advance in the beverage bottle group has already canned good coupled cardboard tray, wrapped with a layer of packaging materials, packaging materials used mainly LDPVC (low density polyvinyl chloride), and then by heating packaging material shrinkage, and clings to the package, so as to complete the packaging process.
Suitable: beer, wine, water, juice, soft drink, daily chemical products, etc..

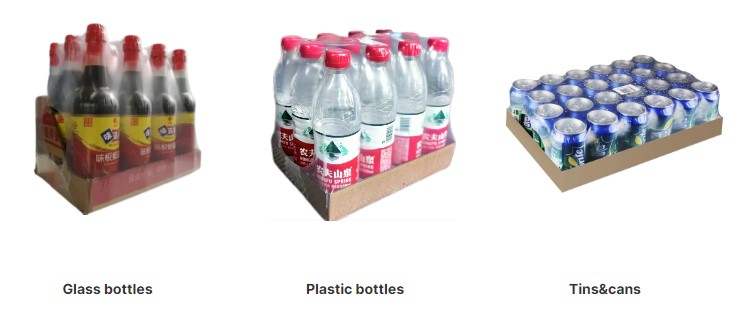

Finally Product

Bottle Type: Round/ Square/ Unique

Shrink film: PE, PP, PVC, POF, etc..

Package type:

(1)350/500/550/600

ML big bag: 4×6，4×5;

small bag: 3×4，3×5, four types of packages

(2)1L／1.5L／2L／2.5L

big bag: 3×3，3×4 ;

small bag: 2×2，2×3, four types of packages

Product Parameters
Product Model WD-BT25
External Size L12500*W1500*2450mm
Packaging Max Size L240*W280*H350mm
Weight 2.5t
Power Supply Voltage 380/220V
Power 60kw
Max Output 10-30bags/min
Shrinkage Temperature 160 - 250°
Film Thickness 0.07-0.1mm
