Automatic OPP BOPP Label Film Applicator Wrap Type Hot Melt Glue Sticker Labeling Machine for Glass

15+ years of filling machinery experience Training And After-Sale Service Engineering Design And Installation

Product overview

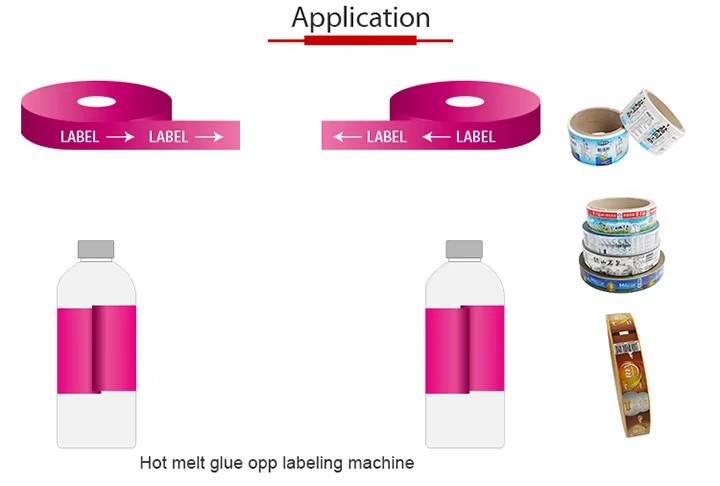

Hot melt glue labeling machine is suitable for OPP full circumference labeling of PET, PP, PE round and square bottles of mineral water, beverage, milk, detergent, etc.
Contact Us View Solutions

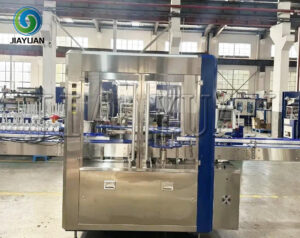

Brief Introduction of OPP Labeling Machine

Hot melt glue labeling machine is suitable for OPP full circumference labeling of PET, PP, PE round and square bottles of mineral water, beverage, milk, detergent, etc. The supply material is rolled OPP, paper, paper-plastic composite material, suitable for accurate labeling at various speeds and high speeds; centralized hot melt glue supply and return glue system, small label loss and glue consumption; beautiful glue pattern, suitable for transparent label paper. Automatic logic program control, human-machine interface, simple operation and easy
maintenance.

OPP Labeling Machine for Wide Applications

Our labeler Machines are widely used in Pharma Syrup, Dry Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Phenol, Fruit Juice, Ready to Drink Juice, Cosmetics, Talcum Powder, Bleach Powder, Herbal Powder, Ayurveda Powder, Wine, Liquor, Electrical Components, Dental Products, Adhesive, Glue, Rubber Adhesive, Stationery, LIP Balm, Petroleum Jelly, Hair Developer, Hair Straightener, Hand Wash, Dish Wash, Hand Sanitizer, Cosmetic Lotion, Hair Wash, etc.

Technical Parameter

No. Item Parameter data
1 Voltage 380V
2 Frequency 50Hz
3 Power 8KW
4 Available bottle dimensions Diameter:40-105mm,
height=80-350MM
5 Label specification Length:125-325mm,
Height:20-150mm
6 Gluing way Roll painting(about 10mm, both label head and tail)
7 Capacity 6000-20,000 bottles per hour
(500ml bottle)
8 Glue Consumption l kg/100,000 bottle
(label height:50mm)
9 Compressed Air Pressure MIN5.0bar MAX8.0bar
10 Consumption of Compressed Air 0.2M³/minute
11 Total Weight 2500Kg
12 Overall dimension L=3150,W=1770,H=1800
