Product details

Features:

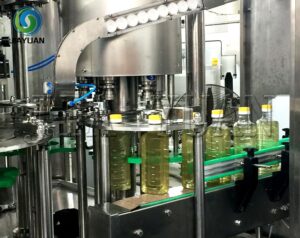

This 2-in-1 filling machine is an automatic filling and capping. It adopts piston filling technology, can fill Viscous liquid, can fill all kinds of edible oil, sunflower oil, Olive oil, vegetable cooking oil, and can also fill ketchup, Peanut butter, etc.

We supply complete solutions for the oil filling and packing line, We can supply the oil tank storage system, bottle steam washing system, bottle filling capping machine, bottle labeling machine, carton box packing machine, weight checker, palletizer system, stretch wrapping machine, and so on.

Main Features

1. Compact structure, complete control system, easy operation, highly automated, can deal with bottle missing, bottle
jamming, and bottle blocking automatically. Filling will be stopped when no bottle is fed in, the failed filling valve will not be fed a bottle or cap.
2. Frame adopts welding structure and oil trap for the convenience of collection and discharge of pollution which meet the sanitary filling requirements.
3. It adopts variable pitch screw and bottle supporting conveyor. It can realize fast bottle size change after changing a few parts. Bottle support plate adopts a flexible structure to avoid causing damage to the weighing sensor in some extreme cases. Meanwhile, crooked bottle detection is adopted to stop filling when the bottle is not put in the right position.
4. The height of the filler and capper is adjustable for easy operation.
5. The machine adopts structure design features, corrosion resistance, long life, and is free from lubrication to save operation costs. Parts which in contact with products adopt excellent stainless steel to avoid dead corners.
6. It adopts weighting filling, weight sensors mounted on the filling stations will send a signal to the filling valve to stop filling when it has reached the determined weight.
7. Filling valves adopt a two-pass cylinder to realize slow-fast-slow filling, which can reach high filling accuracy. Manual sanitary butterfly valves are equipped on each filling valve for the convenience of detection and maintenance.
8. There is a protection mechanism for the weighing sensor to avoid being damaged.
11. The Cap unscrambler can sort the caps in order. Detection devices are installed on the cap hopper and the cap chute to realize auto-control for cap missing and cap full.
13. It is equipped with an imported SKF centralized grease lubrication device to lubricate it periodically by injecting grease.
14. It adopts a touch screen to realize human-machine conversation, operation status of the equipment is shown on the screen clearly.

Details

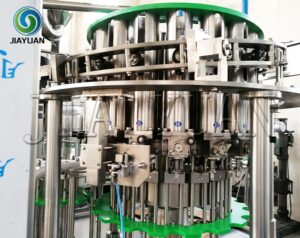

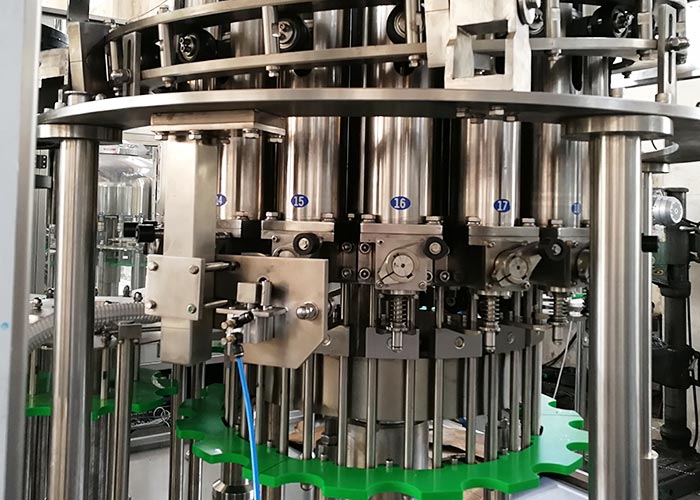

Filling Part

Negative pressure filling valves

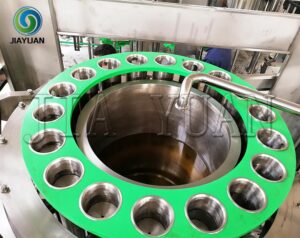

High-quality 304 stainless steel liquid barrels
Pneumatic liquid inlet
Connected CIP cleaning dummy cup
Independent negative pressure back suction tank
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

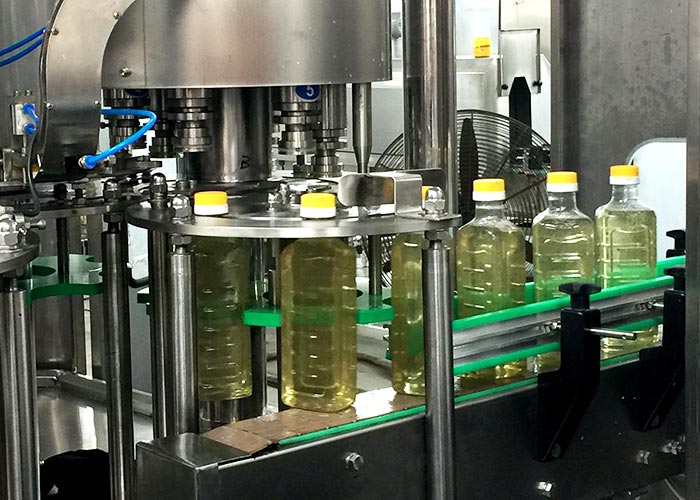

Capping part

Quick-change four-spring threaded sealing heads
High-speed cap hanger for aluminum caps
Automatic capping and cap sorting device
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection
