GLASS Bottle Juice Dairy Beverages Tea Drinks Filling Capping Packaging Machine 3 in 1 Crown Cap
Product overview

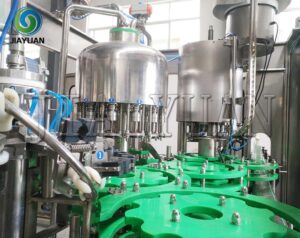

This machine is used to produce juice in glass bottles. It integrates a rinser, juice filler, and capper in one. It is suitable for producing juice, milk drinks, tea drinks, flavored drinks, alcoholic drinks, and other non-carbonated drinks.
Features:
Wash-filling-capping 3-in-1 monobloc for Glass Bottle: The automatic fruit juice packaging machine is used in hot filling and sealing of green tea, black tea, wu-long tea and fruit juice drink, energy drinks, milk drinks, Dairy drinks. This machine integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high.
The filling machine adopts the structure of feeding glass bottles by feeding screw, automatically flushes the bottles, and adopts the principle of lifting and lowering of the filling valve, so that the whole line conveys the bottles smoothly.
The constant pressure filling principle is used for fixed liquid level filling, and the secondary valve opening technology is used to meet the full liquid level filling process requirements.
The rotary cap adjuster adopts pneumatic cap management, which has the functions of not damaging the surface of the cap, sending a signal for the lack of cap in the hopper, and controlling the capping machine to automatically replenish the cap.
The whole machine adopts man-machine interface operation, German SIEMENS is automatic control technology such as computer program automatic control, frequency conversion stepless adjustment and other automatic control technologies, with low temperature automatic shutdown, automatic control of feeding and reflux, no bottle without cap, lack of bottle Wait, if there is no cover in the cover chute, it will automatically stop and wait for power.
APPLICATION:
> Juice: fruit & vegetable juice, pulp juice, concentrate juice
> Beverage: energy drink, vitamin water, flavored juice
> Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk
> Tea: green tea, milk tea, black tea, iced tea
> Coffee: caffé latte, cappuccino, mocha
>Wine: white wine, alcohol, liquor beverages
Details

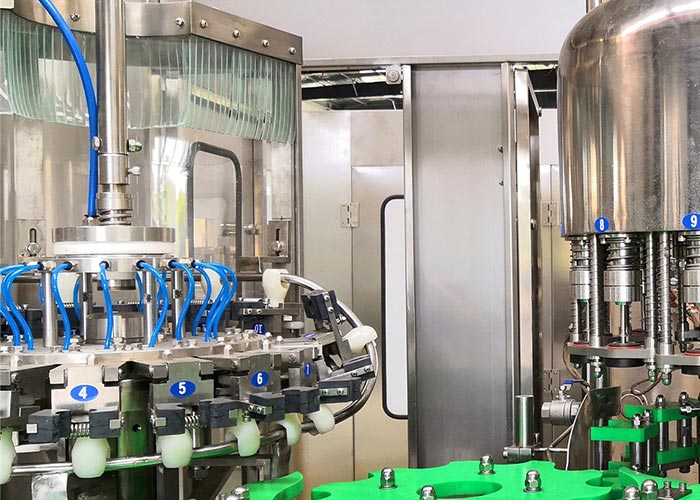

Rinsing System
30 sets of flip clamps, customized jaws
1 set of 304 stainless steel water diversion valve bodies
30 sets of plug-in lifting nozzles
304 stainless steel semi-enclosed water shield
304 stainless steel circulating filter water tank
Quick-change screw, dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

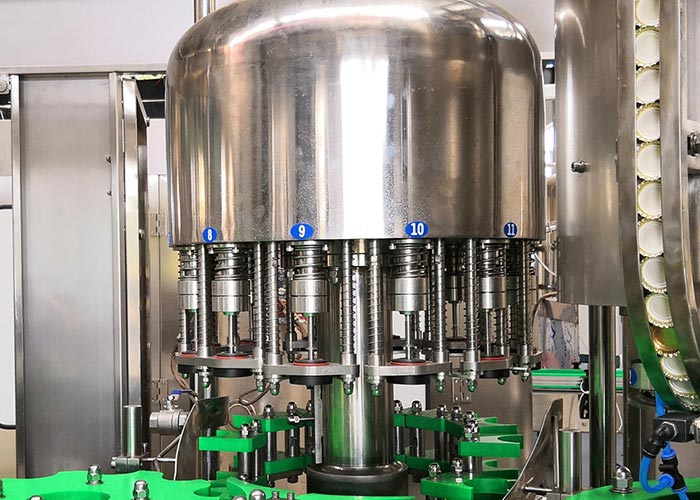

Filling Part
Negative pressure filling valves
High-quality 304 stainless steel liquid barrels
Pneumatic liquid inlet
Connected CIP cleaning dummy cup
Independent negative pressure back suction tank
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

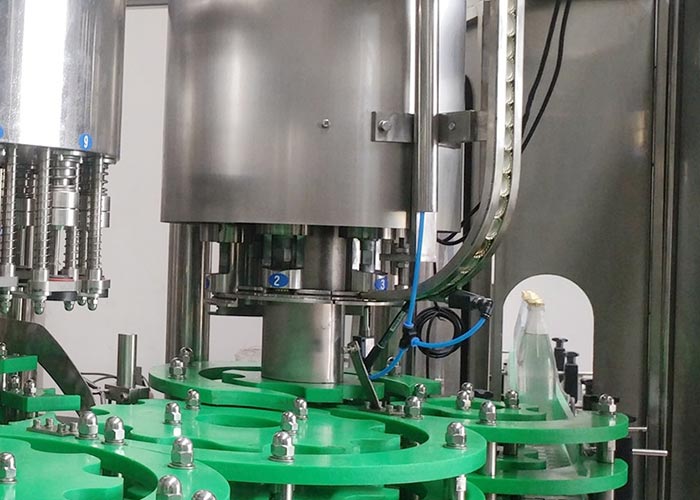

Capping part
Quick-change four-spring threaded sealing heads
High-speed cap hanger for aluminum caps
Automatic capping and cap sorting device
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

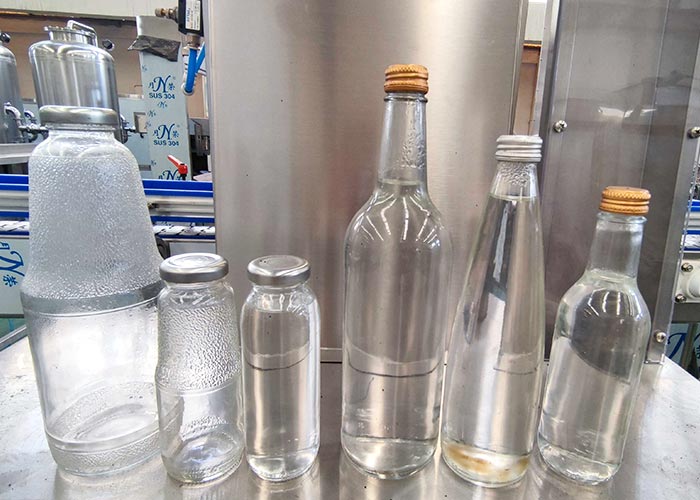

Two types of caps for finished filling products
| Product name | Glass bottle rinsing, filling, and capping machine | ||||||
| Condition | New | ||||||
| Application | Beverage | ||||||
| Automatic Grade | Automatic | ||||||
| Driven Type | Electric | ||||||
| Voltage | 380V | ||||||
| Place of Origin | China | ||||||
| Jiangsu | |||||||
| Brand Name | JIAYUAN | ||||||
| Warranty | 1 year | ||||||
| Service | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | ||||||
| Key Selling Points | Long Service Life | ||||||
| Filling Material | Juice, wine, tea, water, dairy drink | ||||||
| Filling Accuracy | 0.05%F.S. | ||||||
| Core Components | Pressure vessel, Pump, Gear, Engine | ||||||
| Material | SUS304 Stainless Steel | ||||||
| Control | PLC+ Touch Screen+transducer | ||||||
| Model (BCGF) | 16-12-6 | 18/18/6 | 24/24/6 | 32/32/8 | 40/40/12 | 50/50/12 | 60/60/15 |
| Bottle type | Glass bottle | ||||||
| Application | > Juice: fruit & vegetable juice, pulp juice, concentrate juice > Beverage: energy drink, vitamin water, flavored juice > Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk > Tea: green tea, milk tea, black tea, iced tea > Coffee: caffé latte, cappuccino, mocha>Wine: white wine, alcohol, liquor beverages |
||||||
| Cap type | Crown cap, twist-off metal cap, ROPP aluminum cap, pull-off cap | ||||||
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
| Capping heads | 6 | 6 | 8 | 10 | 12 | 15 | 15 |
| Capacity (BPH 500ml) | 3000 | 5500 | 8000 | 12000 | 16000 | 20000 | 24000 |
| Power(kw) | 3.2 | 4.5 | 6.5 | 9 | 12.5 | 16.5 | 20.2 |
| Dimension (mm) | 2400*1600 *2500 |
2600*1920 *2550 |
3100*2300 *2800 |
3800*2500 *2900 |
4600*2800 *2900 |
5450*3300 *2900 |
6500*4500 *2900 |
| Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
