Product details

Features:

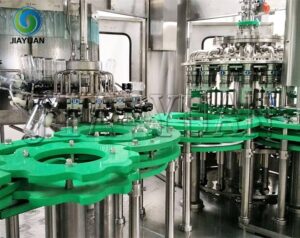

This is a 5 in 1 monoblc to produce glass bottled juice, it combines disinfection water rinsing, pure water rinsing, steam blowing, hot filling and capping in one unit.
It can produce all fruit juice, hot filling can produce mango juice, lemon juice, pineapple juice, orange juice, papaya juice and other fruit juices. It also can fill at ambient tempture to make flavored beverages, water, tea drinks and other still beverages.
We can customize different monobloc according to customers’ request, 3 in 1, 4 in 1, juice with pulp filling, two different cap closing etc.

1. This juice glass 5 in 1 machine adopts an advanced Programmable logic controller (PLC) to control the automatic running of the machine.
2. The input bottle adopts screw conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
3. The photoelectric inspection of the running condition of various parts enables higher automation and convenient operation. It is the ideal first-choice equipment for beverage manufacturers.

APPLICATION:
> Juice: fruit & vegetable juice, pulp juice, concentrate juice
> Beverage: energy drink, vitamin water, flavored juice
> Milk: soy milk, almond milk, chocolate milk, rice milk,  cutured buttermilk
> Tea: green tea, milk tea, black tea, ice tea
> Coffee: caft latte, cappuccino, mocha
>Wine: white wine, alcohol, liquor beverages

Details

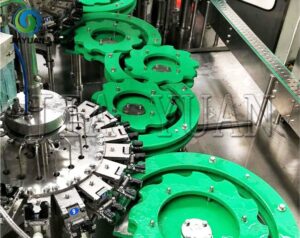

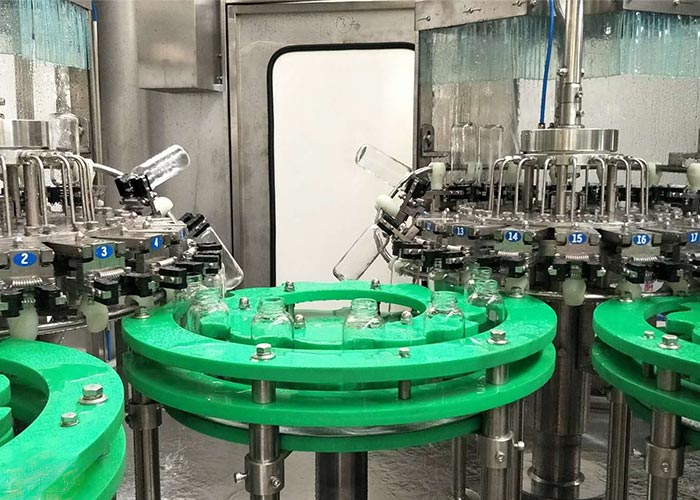

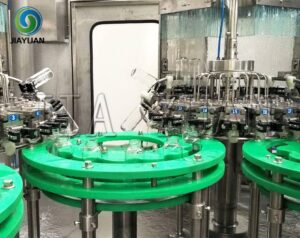

Rinsing System

30 sets of flip clamps, customized jaws
1 set of 304 stainless steel water diversion valve bodies
30 sets of plug-in lifting nozzles
304 stainless steel semi-enclosed water shield
304 stainless steel circulating filter water tank
Quick-change screw, dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

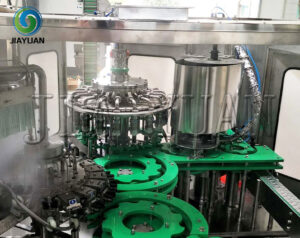

Filling Part

Negative pressure filling valves
High-quality 304 stainless steel liquid barrels
Pneumatic liquid inlet
Connected CIP cleaning dummy cup
Independent negative pressure back suction tank
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

Capping part

Quick-change four-spring threaded sealing heads
High-speed cap hanger for aluminum caps
Automatic capping and cap sorting device
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

The filling machine adopts the structure of feeding glass bottles by feeding screw, automatically flushes the bottles, and adopts the principle of lifting and lowering of the filling valve, so that the whole line conveys the bottles smoothly.

The constant pressure filling principle is used for fixed liquid level filling, and the secondary valve opening technology is used to meet the full liquid level filling process requirements.

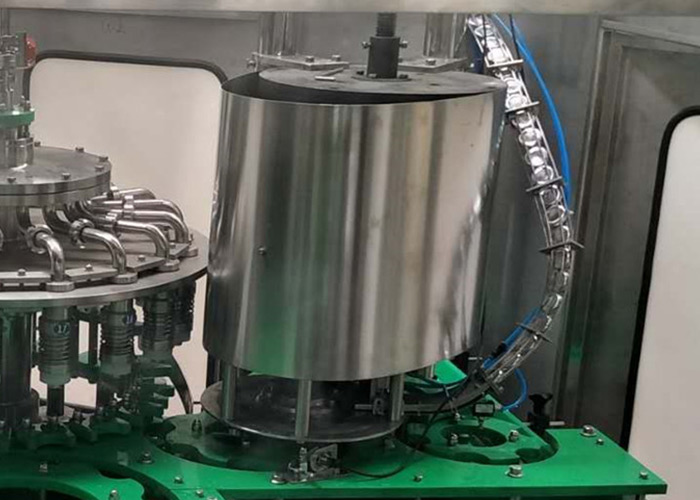

The rotary cap adjuster adopts pneumatic cap management, which has the functions of not damaging the surface of the cap, sending a signal for the lack of cap in the hopper, and controlling the capping machine to automatically replenish the cap.

The whole machine adopts man-machine interface operation, German SIEMENS is automatic control technology such as computer program automatic control, frequency conversion stepless adjustment and other automatic control technologies, with low temperature automatic shutdown, automatic control of feeding and reflux, no bottle without cap, lack of bottle Wait, if there is no cover in the cover chute, it will automatically stop and wait for power.

Two types of caps for finished filling products

IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line
