Product details
Glass Bottle Juice Filling Capping Machine Tea Coffee Beverages Packing Line
Product overview
This machine is used to produce juice in glass bottles. It integrates a rinser, juice filler, and capper in one. It is suitable for producing juice, milk drinks, tea drinks, flavored drinks, alcoholic drinks, and other non-carbonated drinks.
Features:
This is a customized 4 in 1 machine. It has two capping stations, can close ROPP aluminum cap and twist-off metal cap in one machine.
It feeds the cap automatically. It rinses the empty glass bottle inside and out, fills the liquid into the glass bottle, and closes the cap.
It can fill juice, tea drinks, coffee drinks, and can also fill wine, alcohol, and liquor.
It’s made of food-grade stainless steel SUS304, controlled by PLC, frequency inverter, HMI, easy to operate.
1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and faster when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting an advanced pressure filling process, the filling is fast, stable, and accurate.
4. Adopt an advanced capping structure for the crown cap without any surface damage to the cap.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
APPLICATION:
> Juice: fruit & vegetable juice, pulp juice, concentrate juice
> Beverage: energy drink, vitamin water, flavored juice
> Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk
> Tea: green tea, milk tea, black tea, iced tea
> Coffee: caffé latte, cappuccino, mocha
>Wine: white wine, alcohol, liquor beverages
Details

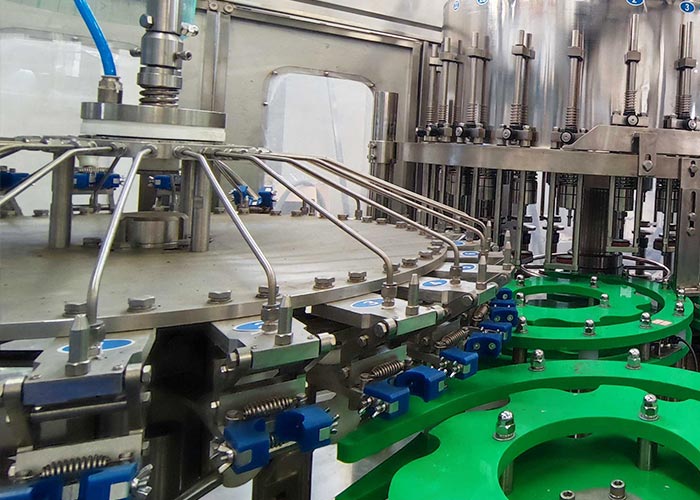

Rinsing System
30 sets of flip clamps, customized jaws
1 set of 304 stainless steel water diversion valve bodies
30 sets of plug-in lifting nozzles
304 stainless steel semi-enclosed water shield
304 stainless steel circulating filter water tank
Quick-change screw, dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

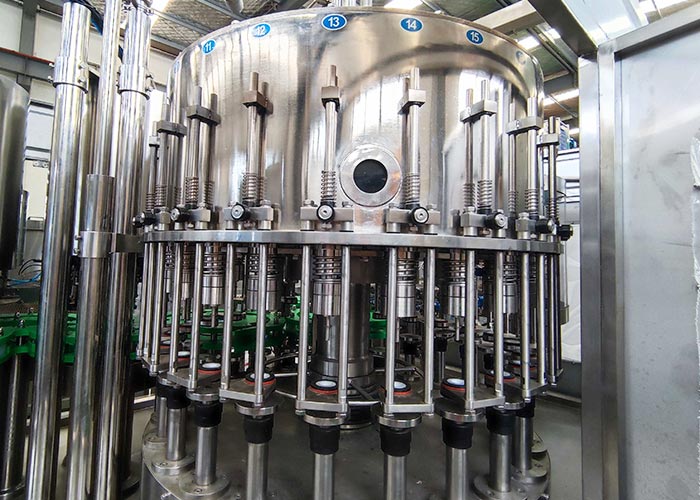

Filling Part
Negative pressure filling valves
High-quality 304 stainless steel liquid barrels
Pneumatic liquid inlet
Connected CIP cleaning dummy cup
Independent negative pressure back suction tank
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection
Capping part
Quick-change four-spring threaded sealing heads

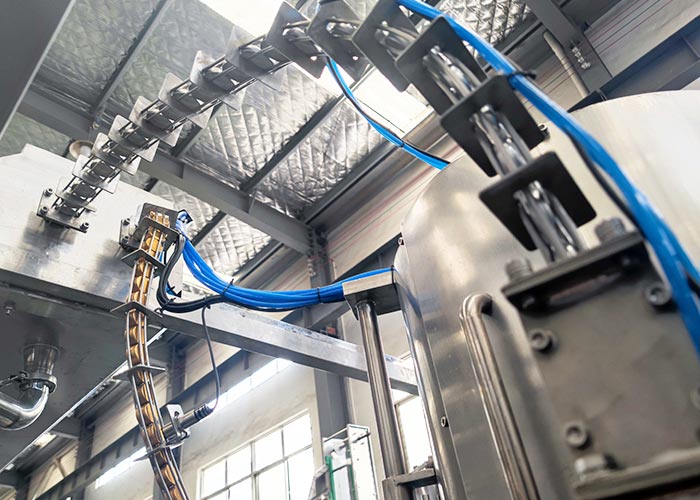

High-speed cap hanger for aluminum caps
Automatic capping and cap sorting device
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection
| Model (BCGF) | 16-12-6 | 18/18/6 | 24/24/6 | 32/32/8 | 40/40/12 | 50/50/12 | 60/60/15 |
| Bottle type | Glass bottle | ||||||
| Application | > Juice: fruit & vegetable juice, pulp juice, concentrate juice > Beverage: energy drink, vitamin water, flavored juice > Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk > Tea: green tea, milk tea, black tea, iced tea > Coffee: caffé latte, cappuccino, mocha>Wine: white wine, alcohol, liquor beverages |
||||||
| Cap type | Crown cap, twist-off metal cap, ROPP aluminum cap, pull-off cap | ||||||
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
| Capping heads | 6 | 6 | 8 | 10 | 12 | 15 | 15 |
| Capacity (BPH 500ml) | 3000 | 5500 | 8000 | 12000 | 16000 | 20000 | 24000 |
| Power(kw) | 3.2 | 4.5 | 6.5 | 9 | 12.5 | 16.5 | 20.2 |
| Dimension (mm) | 2400*1600 *2500 |
2600*1920 *2550 |
3100*2300 *2800 |
3800*2500 *2900 |
4600*2800 *2900 |
5450*3300 *2900 |
6500*4500 *2900 |
| Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
