Glass Bottle Wine Alcohol Liquor Vokda Filling And Capping Monoblock Filler And Capper
Product overview
This is glass bottle washing filling capping 3 in 1 machine, can fill vokda, liquor, alcohol, wine and other still beverage.
Features:
This is glass bottle rinsing-filling-capping 3-in-1 monobloc. It is used to produce wine, Vodka, Whiskey,alcohol, liquor beverages, it also can produce flavored water, juice,tea drinks and other still beverages. There are different models, capacity can be from 1000 to 20000 bottles per hour. It’s control by PLC, frequencey inverter and HMI, the automation is high.
The filling machine adopts the structure of feeding glass bottles by feeding screw, automatically flushes the bottles, and adopts the principle of lifting and lowering of the filling valve, so that the whole line conveys the bottles smoothly.
The constant pressure filling principle is used for fixed liquid level filling, and the secondary valve opening technology is used to meet the full liquid level filling process requirements.
The rotary cap adjuster adopts pneumatic cap management, which has the functions of not damaging the surface of the cap, sending a signal for the lack of cap in the hopper, and controlling the capping machine to automatically replenish the cap.
The whole machine adopts man-machine interface operation, German SIEMENS is automatic control technology such as computer program automatic control, frequency conversion stepless adjustment and other automatic control technologies, with low temperature automatic shutdown, automatic control of feeding and reflux, no bottle without cap, lack of bottle Wait, if there is no cover in the cover chute, it will automatically stop and wait for power.
APPLICATION:
> Juice: fruit & vegetable juice, pulp juice, concentrate juice
> Beverage: energy drink, vitamin water, flavored juice
> Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk
> Tea: green tea, milk tea, black tea, iced tea
> Coffee: caffé latte, cappuccino, mocha
>Wine: white wine, alcohol, liquor beverages
Details

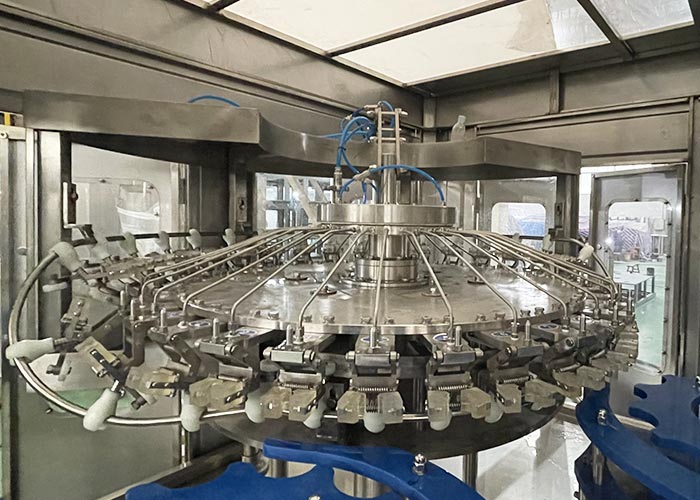

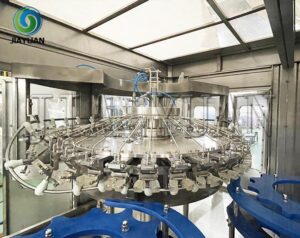

Rinsing System
30 sets of flip clamps, customized jaws
1 set of 304 stainless steel water diversion valve bodies
30 sets of plug-in lifting nozzles
304 stainless steel semi-enclosed water shield
304 stainless steel circulating filter water tank
Quick-change screw, dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

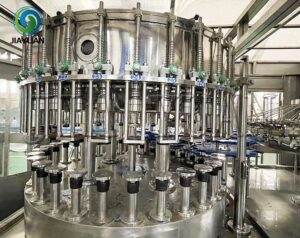

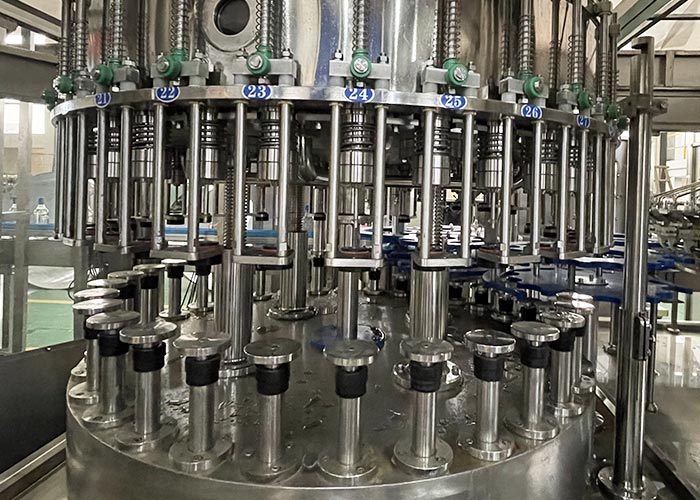

Filling Part
Negative pressure filling valves
High-quality 304 stainless steel liquid barrels
Pneumatic liquid inlet
Connected CIP cleaning dummy cup
Independent negative pressure back suction tank
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection

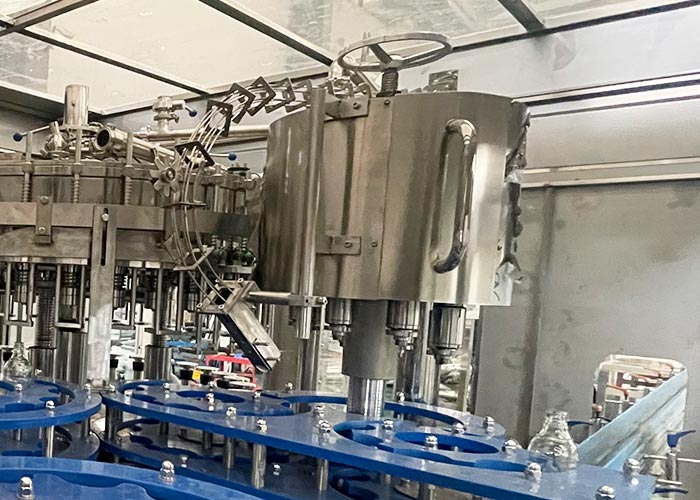

Capping part
Quick-change four-spring threaded sealing heads
High-speed cap hanger for aluminum caps
Automatic capping and cap sorting device
Quick-change bottle in and out dial wheel
304 stainless steel panel and shield
Bottle jamming overload protection
| Model (BCGF) | 16-12-6 | 18/18/6 | 24/24/6 | 32/32/8 | 40/40/12 | 50/50/12 | 60/60/15 |
| Bottle type | Glass bottle | ||||||
| Application | > Juice: fruit & vegetable juice, pulp juice, concentrate juice > Beverage: energy drink, vitamin water, flavored juice > Milk: soy milk, almond milk, chocolate milk, rice milk, cultured buttermilk > Tea: green tea, milk tea, black tea, iced tea > Coffee: caffé latte, cappuccino, mocha>Wine: white wine, alcohol, liquor beverages |
||||||
| Cap type | Crown cap, twist-off metal cap, ROPP aluminum cap, pull-off cap | ||||||
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
| Capping heads | 6 | 6 | 8 | 10 | 12 | 15 | 15 |
| Capacity (BPH 500ml) | 3000 | 5500 | 8000 | 12000 | 16000 | 20000 | 24000 |
| Power(kw) | 3.2 | 4.5 | 6.5 | 9 | 12.5 | 16.5 | 20.2 |
| Dimension (mm) | 2400*1600 *2500 |
2600*1920 *2550 |
3100*2300 *2800 |
3800*2500 *2900 |
4600*2800 *2900 |
5450*3300 *2900 |
6500*4500 *2900 |
| Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
