Product details
Laser Printer For Water/Juice/Bottle Canned Carbonated Drinks
Product overview

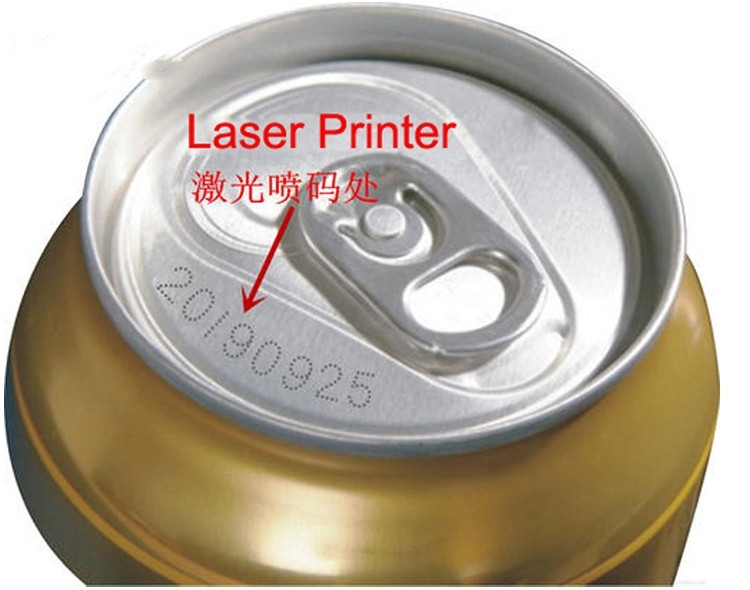

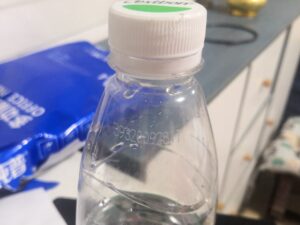

Laser coding achieves excellent and lasting coding effect. It can be used to print QR codes, image logos, anti-counterfeiting codes, batch numbers, time and any text.Technical Parameters
| Machine material | All aluminum structure |
| rated power | L3000（30W） |
| Marking range | 110x110MM |
| Marking speed | ≤7000mm/s |
| External socket | 2 serial ports, 2 USB |
| electricity demand | 220V 50/60Hz |
| cooling method | Air cooled |
| Environmental conditions | External temperature -10 °c ~ 50 °c, temperature ≤ 95% non-condensing; no vibration |
| User Interface | High-speed touch screen |
| Machine weight | 88KG |
Technical characteristics
1. Integrated compact body design;
2. The laser jet printing head can be adjusted up and down and back and forth, which is more convenient to use.
3. Ultra-high speed coding, more than 2 times that of ordinary laser printers;
4. Low cost, low power consumption (almost 0 consumables);
5. Excellent and permanent inkjet marking, more accurate coding;
6. The operating system designed for pipeline applications is far superior to normal Windows operations.
7. Environmentally adaptable, sealed design, higher level of protection
8. Extremely high reliability, stable operation without maintenance
9. Double red light focusing, saving time and effort
10. The whole machine is fully guaranteed and lifetime after-sales protection.
Applications
| Model name
Laser tube power |
European code l3000
30-watt CO2 laser |
| Production line top speed | 38 m / min |
| Maximum marking speed | 600 characters/sec |
| Code feature | Number of lines of text: limited only by character height and printable area
Character height: 1-120 mm Character selection: Chinese, Latin, and Unicode fonts Language selection: English, French, Spanish, German, Portuguese, Brazilian, Chinese, Korean, Japanese, Russian, Arabic, etc. |
| Code area and focal length in the table (mm) | Lens 110x110 / focal length 130 |
| operating | WYSIWYG color touch screen optional, qwerty or azerty virtual keyboard, 500 information storage capabilities through icons and online help files
Upload and download information via USB flash Standard i/o, Ethernet interface, USB interface, synchronizer interface, sensor interface |
| Other features | Print head, anodized aluminum
Dust/moisture protection: IP55 The one-piece bracket includes: adjustment lever with x and y-axis adjustment, pedal with caster, printhead carriage, user interface support, uninterruptible power supply and dark-rotation bracket, clamp, packaging sensor, and sensor base Operating temperature range: 5 to 45 °C - humidity; 5% to 80% without condensation Power: 100-240 volts with automatic switching |
| Optional accessories | Smoking device |
| Accessories | Shield, sensor, synchronizer |
| Actual maximum power | 30 watts |
| wavelength | 10.6um |
| Production line top speed | About 15000 bottles/hour (2 lines) |
| About 20000 bottles/hour (1 line) |
