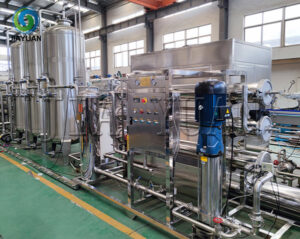

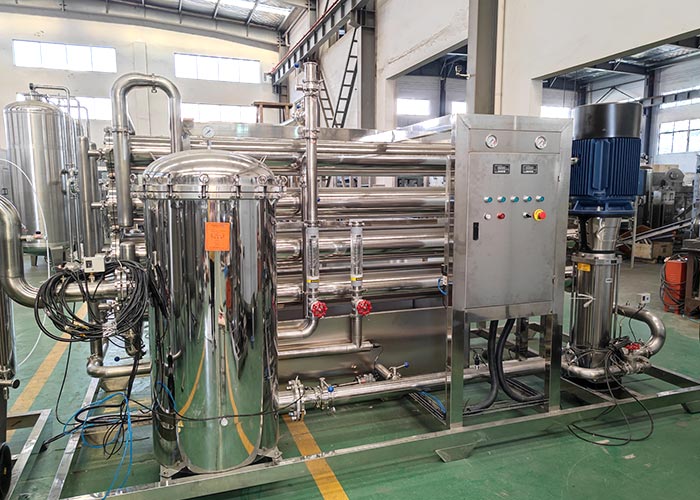

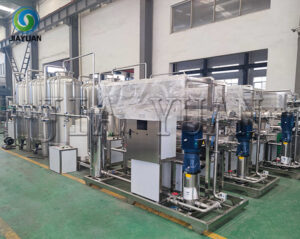

Pure Water Treatment System

15+ years of filling machinery experience Training And After-Sale Service Engineering Design And Installation

Product overview

Our equipment can make pure water or mineral water, source water can be underground water, drilling water, tap water, municipal water, and so on. This is standard one, we can offer a solution according to your water quality report, capacity can be from 1000 Liters to 50000 liters.
Contact Us View Solutions

Our equipment can make pure water or mineral water, source water can be underground water, drilling water, tap water, municipal water, and so on. This is standard one, we can offer a solution according to your water quality report, capacity can be from 1000 Liters to 50000 liters.



Processing

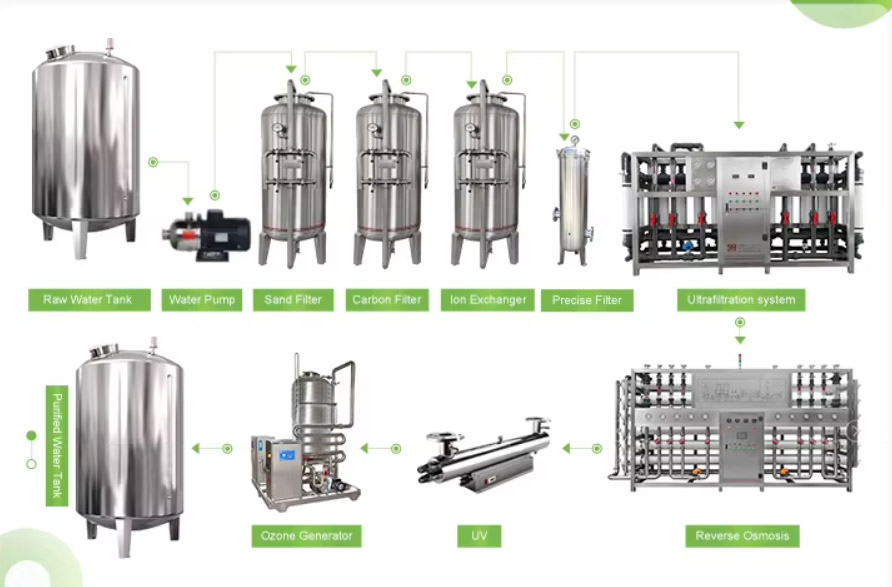

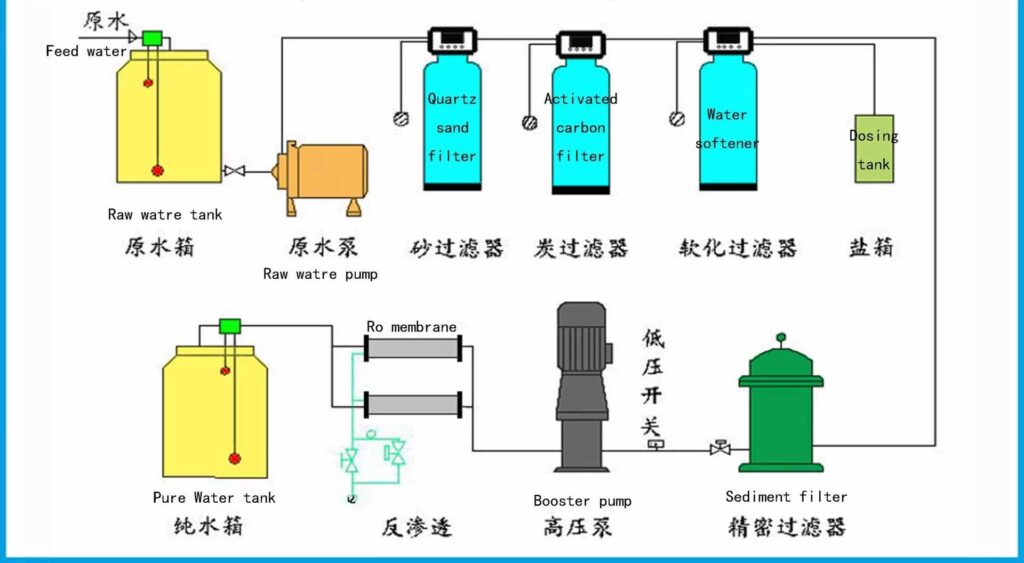

Pure Water Treatment System Includes:



Details



Filter

RO
Item name material filter element function
1 booster pump SUS304 / To pump raw water into pre-treatment tanks 2
2 Quartz sand filter SUS304 Coarse sand

Medium sand

Fine sand

 To remove the sediment, manganese, rust, colloid material, mechanical impurities, and suspended solids
3 Active carbon filter SUS304

active carbon

 To remove the pigment, smell, a large number of chemical and biological organisms, residual value of water, and pesticide pollution, etc.
4 precision filter SUS304 pp membrane To filter the water before entering reverse osmosis and protect the RO membrane.

mainly remove the particle size 1-5 microns colloidal particles.
5 RO system SUS304

RFP

 8040/4040 membrane remove dissolved solids and bacteria, viruses, etc.
6 UV Sterilizer SUS304 UV lamp To kill the bacteria in water by physical means
7 Ozone / O3 To kill the bacteria in water by chemical reaction
8 Pure water storage tank SUS304 0.8mm/3mm / To store pure water
