Product details
Sports Capping Machine 4-in-1 Water Food Beverage Chemical Packaging
Product overview
This machine is usually used to produce juice, dairy drinks.
Features:
This is a PET bottle 4 in 1 machine: rinsing, filling, plastic capping, sports capping. It has two capping stations, can close plastic cap and sports cap in one machine.
It can produce all fruit juice, flavored beverages, tea beverages, water and other still beverage.
Details

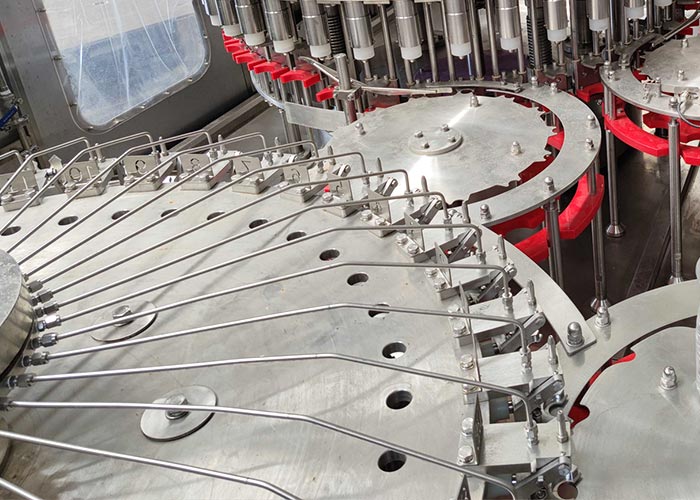

Rinsing System
The innovative water distribution system of the liquid filling machines for sale optimizes water conservation. The patented bottle clamp design features 304 stainless steel claws with food-grade plastic pads to prevent scratches and protect the bottle's mouth, enhancing the drinking experience and avoiding any injury to consumers. The food-grade 304 stainless steel flushing head and water injection design provide additional cleanliness while conserving even more water.

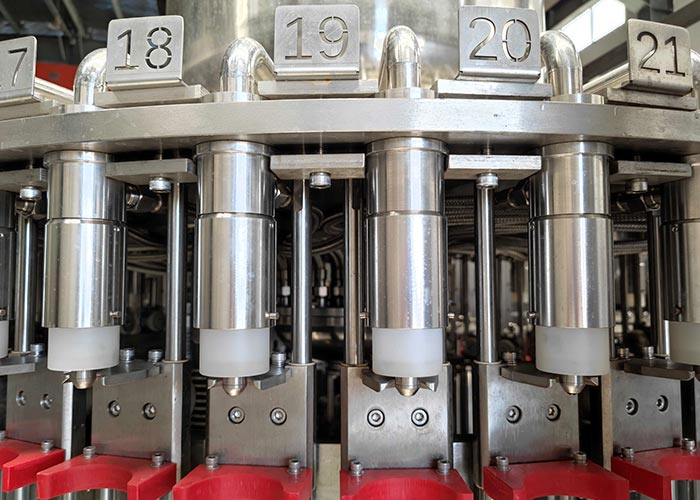

Filling Part
Our hot fill bottling machine is satisfying the market of JNSDIT (juice, nectar, soft drink, isotonics, tea) filled in PET bottles. The liquid filter has 14-40 filling heads, which is more efficient than a machine that has a single head.

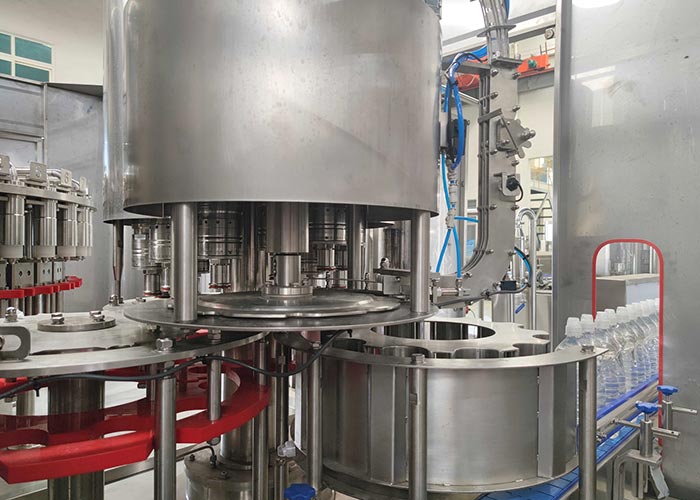

Capping part
A capping solution that is unparalleled and uses a solitary container for optimal bottle excellence and drink protection. It enhances the speed of juice filling and seals PET bottles promptly, preserving top-notch product standards and preventing any secondary contamination.
| Containers and specifications | ||||
| Full Automatic Complete Juice Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck
According request |
As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤310mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle separating system will be added. |
||||
| Juice Preparation | Fruit, Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
|
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic |
Packing system | Min, Spec. | Manual
Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer |
|
| Manual
Film shrinker Wrap Around Packer Robert Packing Machine |
1*2
2*3 3*4 4*6 3*5 |
|||
| User Ambient Conditions | Temperature：10～40℃； Humidity： No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
