Ultra Clean Juice Filling Plant Flavoured Juice Drink Making Machine
Product overview
This machine is usually used to produce juice, dairy drinks.
Features:
We supply Ultra Clean Filling Machines (non-contact filling) Rinser/Filler/cappers for filling of delicate products such as Fruit juices.
Three purification processes are adopted: disinfectant rinse, purified water rinse, sterile air blow dry, and the roof adopts a million level purification standard.
Adopts vacuum filling, the machine installs a seperated liquid level evening station, can make all levels in bottle even. With cap on-line sterilization, guarantee cap clean.
What is the process for Ultra Clean Filling?
1. Chemical sterilisation of the bottles
2. Bottle sterile rinsing using Auxonia and combined with sterile water rinsing of the Auxonia
3. UV ray + chemical sterilisation of the caps + washing with sterile water before capping in clean room. The bottle closures or caps can be sterilised with steam in the chute or by an Auxonia spray.

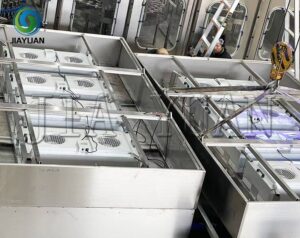

4. Over pressure in the filling machine with sterile filtered air is vital to ensure harmful bacteria are filtered out of the air inside the filler. Air is first filtered via an HEPA filter and pumped at a light pressure inside the filter which is enclosed in a full shell where air is filtered. The overpressure ensures that no contaminated air is let in to the filling machine during normal production.

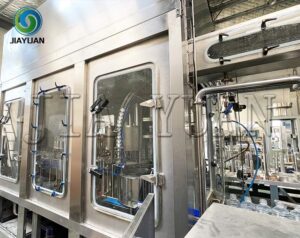

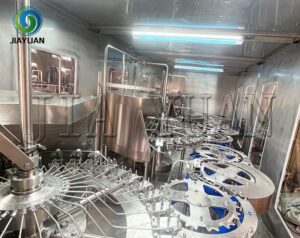

Several Systems in One Machine

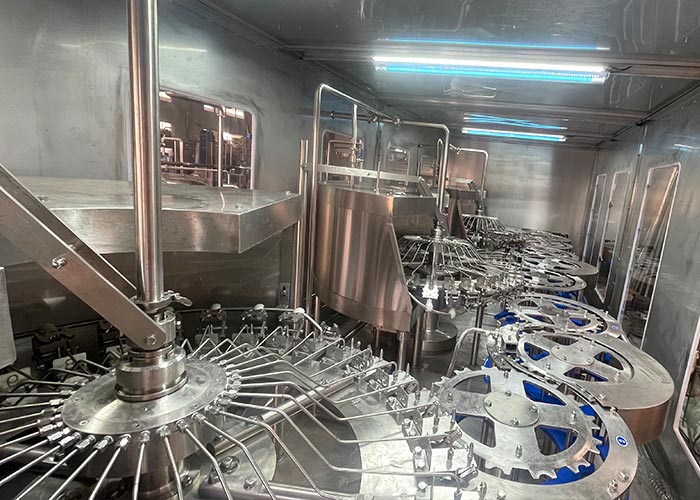

Rinsing System
The innovative water distribution system of the liquid filling machines for sale optimizes water conservation. The patented bottle clamp design features 304 stainless steel claws with food-grade plastic pads to prevent scratches and protect the bottle's mouth, enhancing the drinking experience and avoiding any injury to consumers. The food-grade 304 stainless steel flushing head and water injection design provide additional cleanliness while conserving even more water.

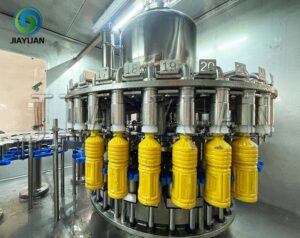

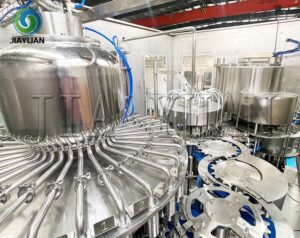

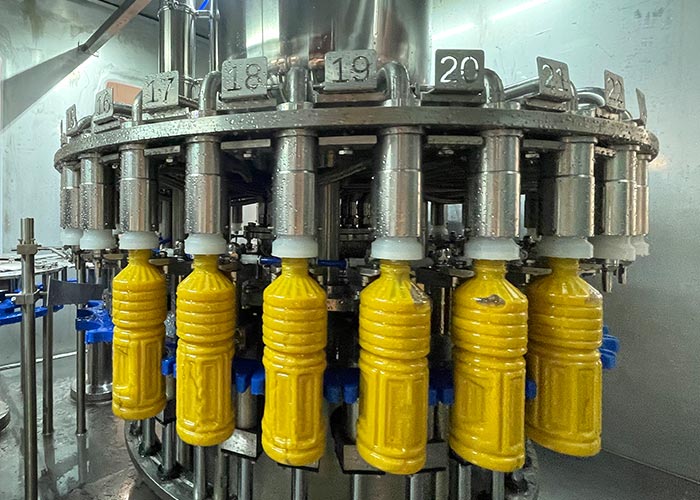

Filling Part
Our hot fill bottling machine is satisfying the market of JNSDIT (juice, nectar, soft drink, isotonics, tea) filled in PET bottles. The liquid filter has 14-40 filling heads, which is more efficient than a machine that has a single head.

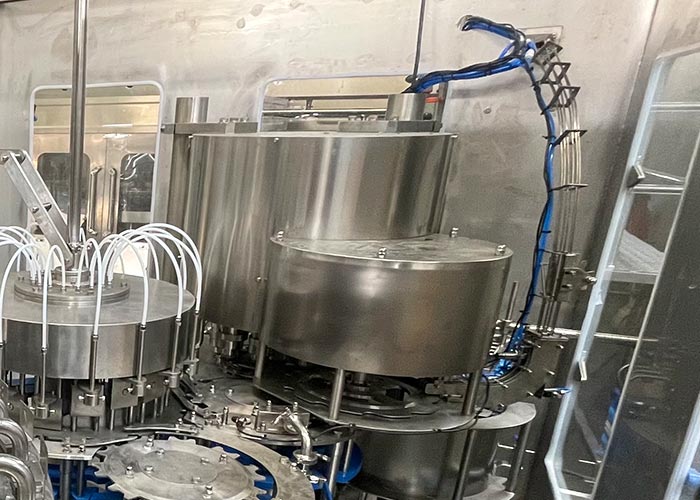

Capping part
A capping solution that is unparalleled and uses a solitary container for optimal bottle excellence and drink protection. It enhances the speed of juice filling and seals PET bottles promptly, preserving top-notch product standards and preventing any secondary contamination.
| Containers and specifications | ||||
| Full Automatic Complete Juice Production Line | Hot Filling Fruit Juice | |||
| Material | Shape | Filling volume | Filling level（mm） | Neck type |
| PET Bottle | Square or Round Bottle | 100-2000ml | Distance from bottle neck
According request |
As request |
| Adjustable specifications of the bottle type | 【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤310mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle separating system will be added. |
||||
| Juice Preparation | Fruit, Concentrate, Powder mixing ..... | |||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
|
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic |
Packing system | Min, Spec. | Manual
Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer |
|
| Manual
Film shrinker Wrap Around Packer Robert Packing Machine |
1*2
2*3 3*4 4*6 3*5 |
|||
| User Ambient Conditions | Temperature：10～40℃； Humidity： No dew | |||
| User Electrical Supply Specification | Voltage：380V±5%， 3phase； Frequency：50HZ±1% | |||
